In fields such as food and drug safety testing and microbiological research, colony counting is a critical but tedious task. Traditional manual counting is not only time-consuming and labor-intensive but also susceptible to human error, significantly compromising the accuracy of results. Today, Guochu Technology, with its leading automatic colony counter technology, easily addresses these industry challenges and redefines the standards for colony counting.

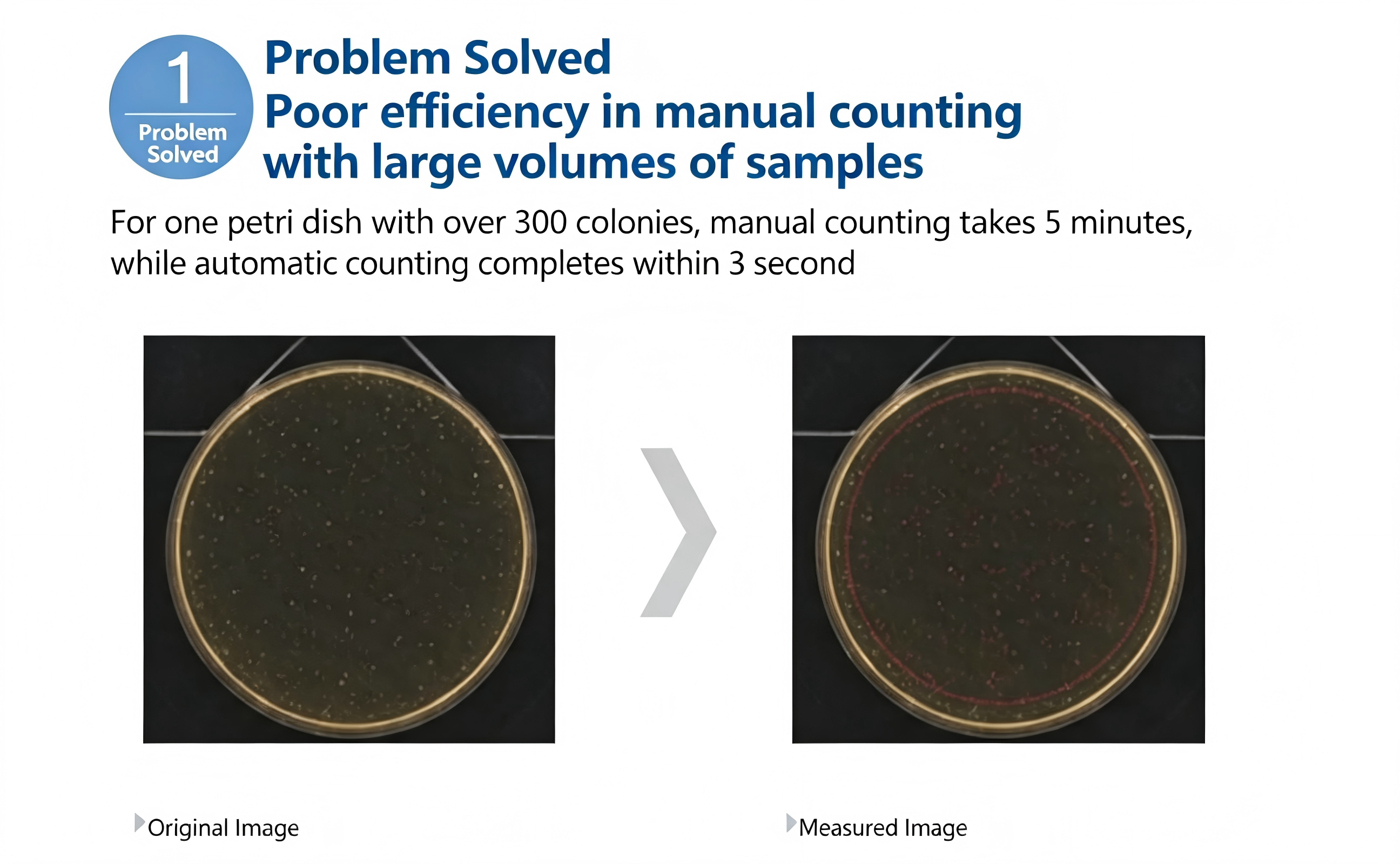

When dealing with dense colonies, traditional manual counting requires operators to spend 10 minutes or even longer to complete the counting of a single sample. This approach is not only inefficient but also causes visual fatigue, further affecting counting accuracy. In contrast, the automatic colony counter, powered by advanced high-speed image processing technology, reduces this process to just 5 seconds, with even better performance possible depending on the number and types of colonies. This tremendous efficiency gain enables testing personnel to complete more sample analyses in a shorter time, greatly improving overall productivity.

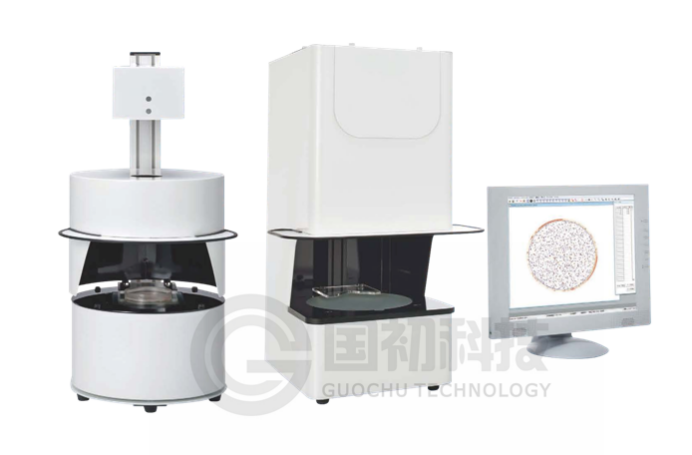

The automatic colony counter is a microbial analysis instrument that integrates high-resolution imaging, intelligent image recognition algorithms, and automated control technology. It automatically performs a series of complex processes, including scanning of culture dishes, colony identification, quantitative counting, size analysis, classification and categorization, and data output, achieving a major transition from "human visual inspection" to "machine-intelligent recognition."

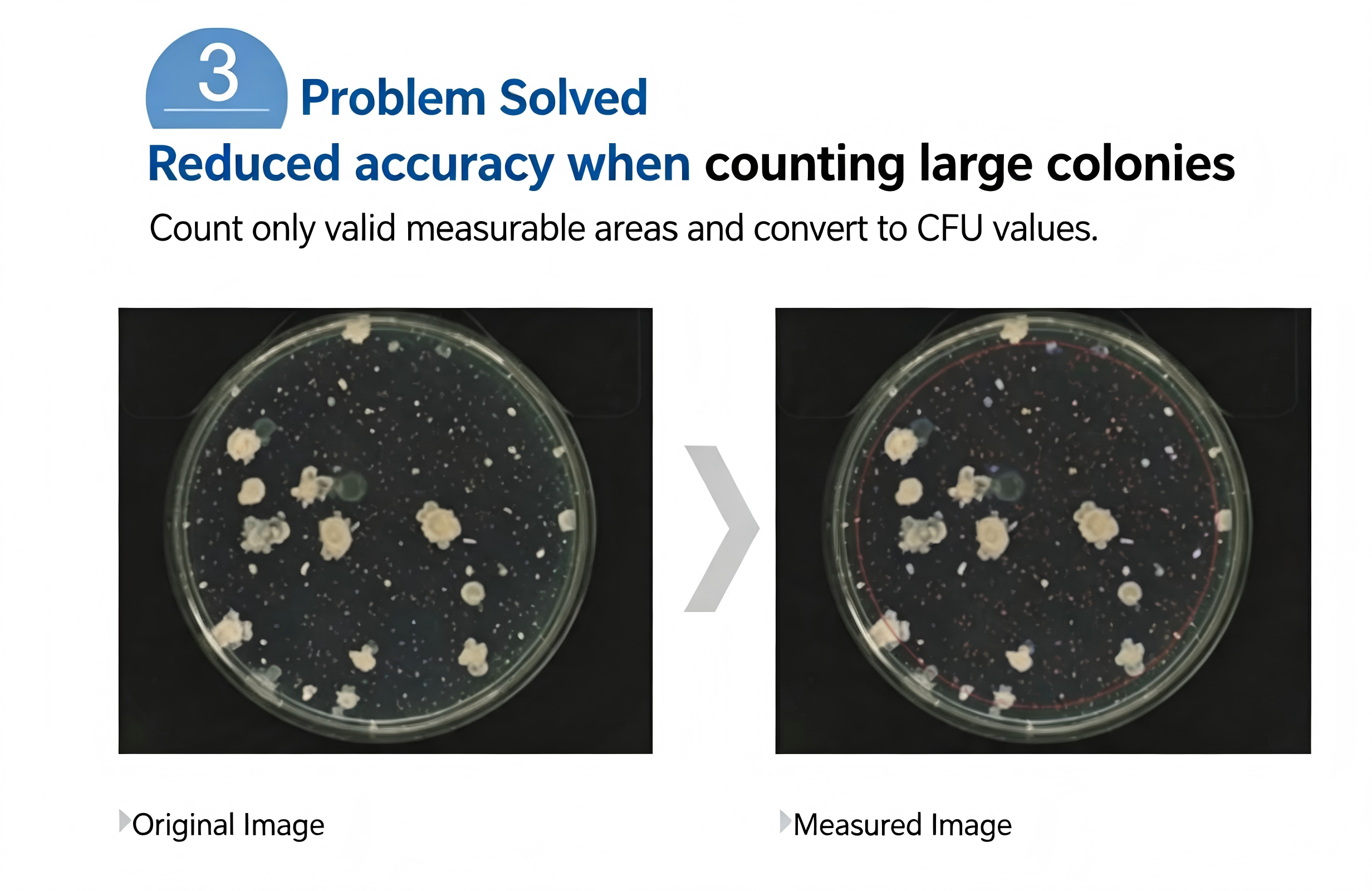

The automatic colony counter employs multiple innovative technologies to ensure counting accuracy. It can individually measure the area of each colony. By setting a specified diameter and combining it with the fixed thickness of the culture medium, the device uses a fixed binarization coefficient to precisely measure the target colonies. During automated measurement, the device automatically excludes large colonies to avoid interference with counting results. At the same time, the measurable area is automatically calculated, and accurate CFU (colony forming unit) conversion is achieved, providing reliable data support for scientific research and quality inspection. Its operating principle is based on advanced optical imaging technology and intelligent image processing algorithms. First, a professional-grade color or grayscale camera, paired with a uniform light source (such as LED diffuse illumination), captures clear images of colonies on the culture dish, ensuring images are free of shadows and reflections. Next, deep learning and machine vision technologies are used to precisely analyze the images, capable of segmenting adherent colonies, identifying micro-colonies (as small as 0.1 mm), and distinguishing target colonies from contaminants or impurities. Morphological analysis is also supported, allowing automatic measurement of colony diameter, area, roundness, color, and other parameters. Finally, through automated workflows equipped with an automatic sampler or multi-plate scanning platform, dozens of culture dishes can be processed continuously. With a single click, the system automatically completes imaging, analysis, counting, and report generation, with no manual intervention required throughout the process, significantly improving work efficiency.
The core advantages of the automatic colony counter include:
High throughput and rapid processing: Analysis of a single culture dish takes only 5–10 seconds, achieving efficiency more than 10 times that of manual counting. It is ideal for large-volume sample testing (e.g., food microbial screening), saving significant time and cost.
Accuracy, reliability, and standard compliance: It eliminates human errors such as missed counts or misjudgments, delivering high result repeatability. It complies with international standards such as ISO, GB, and USP, ensuring data accuracy in pharmaceutical sterility testing and environmental monitoring.

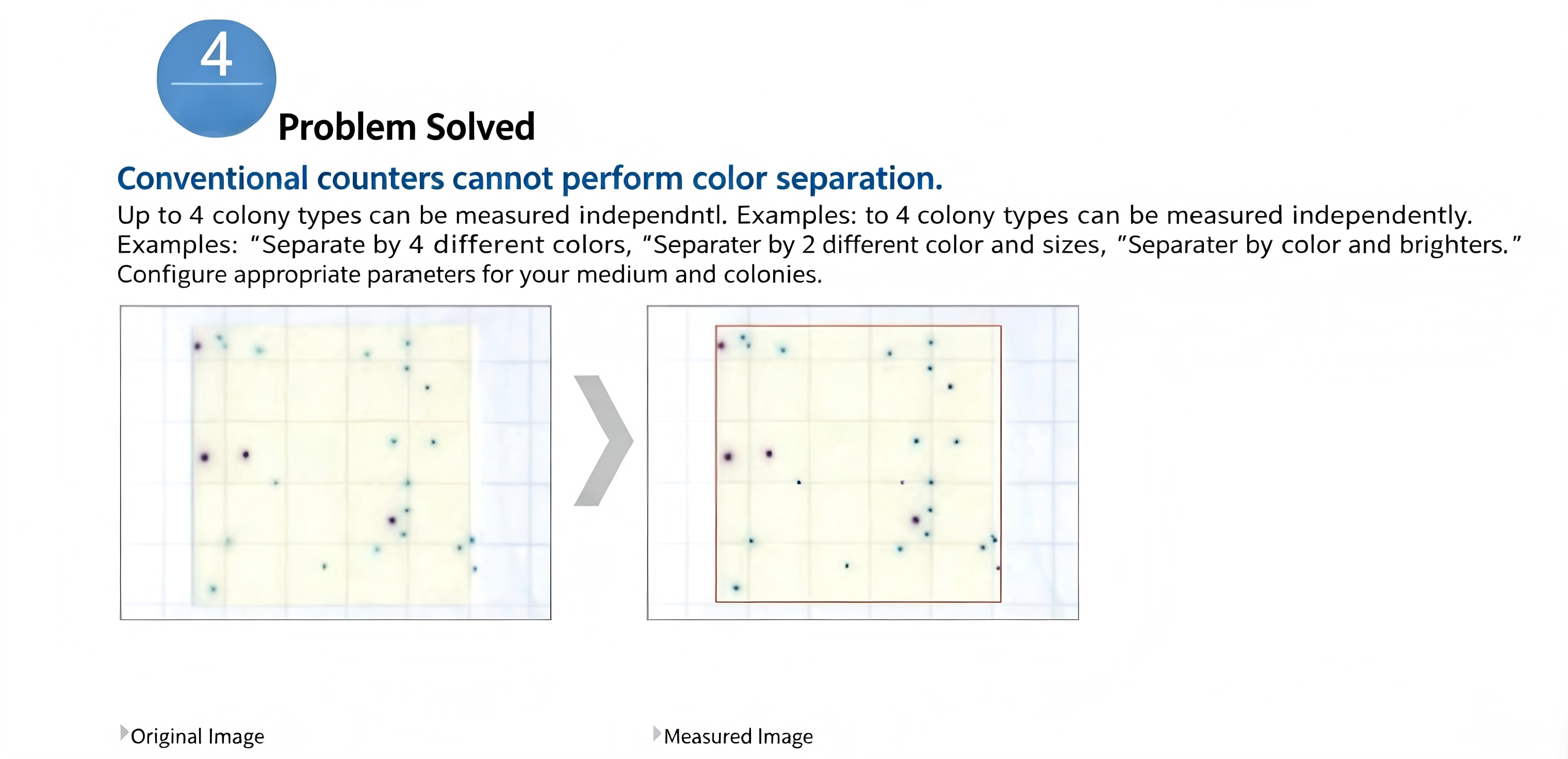

Intelligent classification to meet diverse needs: Colonies can be statistically classified by color, size, and shape. The system supports mixed flora analysis and target colony screening (e.g., coliform bacteria, Staphylococcus aureus), facilitating rapid response in disease control and emergency testing.
Data traceability and management convenience: Original images, analysis results, and operation logs are automatically saved, supporting audit trails (compliant with GMP and GLP). Data can be exported in Excel or PDF formats, facilitating research archiving and report preparation.
User-friendly and easy to operate: Equipped with a touchscreen interface, the system supports custom analysis templates, threshold settings, and result verification, balancing automation with manual intervention flexibility and lowering the operational barrier.
Application scenarios for the automatic colony counter include:
Food industry: Detecting total colony counts, coliform bacteria, etc., rapidly identifying contamination and ensuring product microbiological safety.
Pharmaceutical companies: Used for sterility testing and monitoring of settle plates in cleanrooms, strictly controlling contamination and ensuring drug quality.
Disease control and inspection agencies: Rapidly screening samples during public health emergencies (e.g., COVID 19) to support prevention and control decision-making.
Research laboratories: Collecting data on microbial ecology, antimicrobial experiments, etc., to support scientific research exploration.
Guochu Technology has always been driven by technological innovation. Its automatic colony counter, with its advantages of high efficiency, precision, and convenience, provides strong support for microbiological testing, helping the industry raise testing standards and ensuring product safety and research quality.
